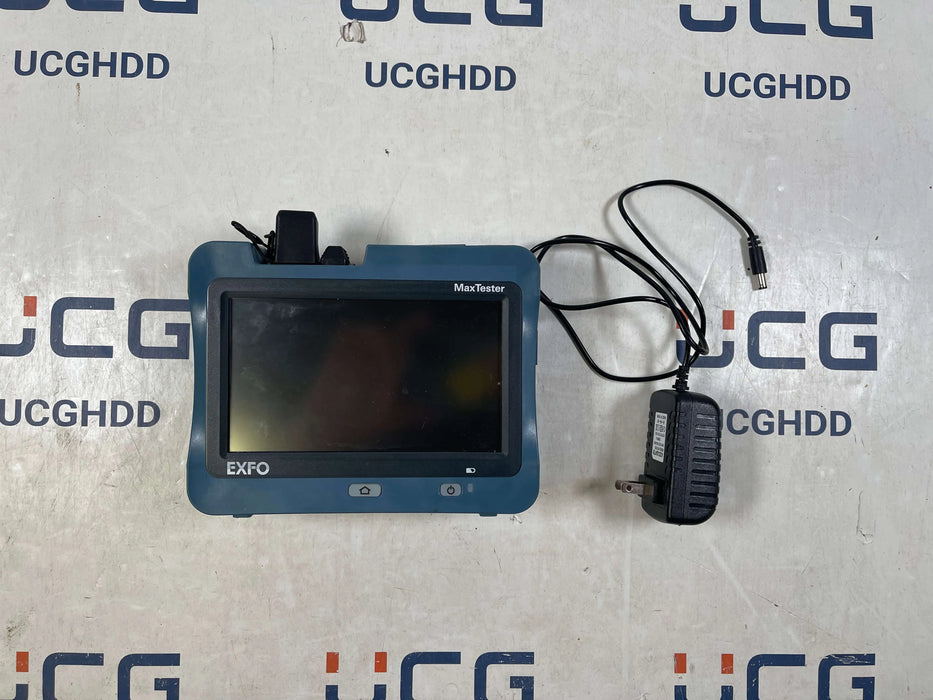

Used EXFO MAX-715B-M1-EA-RF 1310/1550 nm Fiber Optic Tester. Stock number: E5
Package includes:
- Used EXFO MAX-715B-M1-EA-RF SingleMode Fiber IOLM
- Used AC Adapter/Charger
Description:
The MaxTester 715B iOLM is optimized for the point-to-point testing and troubleshooting of FTTx architectures, and is ideal for testing short fibers (e.g., inside a CO environment or at FTTA/DAS network installations).
IOLM only
Financing:
Apply for financing. Low monthly payments.
We accept trade-ins:
We make trades local dealers cannot match. Trade up, trade down with cash-back, or sell your used equipment. Contact us to see what we can do for you!
Warranty:
We offer 30 day warranty. Take the stress out of buying used equipment.
Next-day delivery within USA:
Avoid downtime. Request one-day delivery and get remote display the next day.
We ship worldwide:
We ship worldwide and offer flexible international shipping rates. We work with the freight forwarder of your choice or help you to choose the most suitable one.
Specifications:
| Display |
7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT |
| Interfaces |
Two USB 2.0 ports RJ45 LAN 10/100 Mbit/s |
| Storage |
2 GB internal memory (20 000 OTDR traces, typical) |
| Batteries |
Rechargeable lithium-polymer battery 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138 |
| Power supply |
Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum |
| Wavelength (nm) | 1310 ± 30/1550 ± 30 |
| SM live port built-in filter |
1625 nm: highpass >1595 nm isolation >50 dB from 1270 nm to 1585 nm |
| Dynamic range (dB) | 30 |
| Event dead zone (m) | 1 |
| Attenuation dead zone (m) | 4 |
| PON dead zone (m) | 35 |
| Distance range (km) | 0.1 to 160 |
| Pulse width (ns) | 5 to 20 000 |
| Linearity (dB/dB) | ±0.05 |
| Loss threshold (dB) | 0.01 |
| Loss resolution (dB) | 0.001 |
| Sampling resolution (m) | 0.04 to 5 |
| Sampling points | Up to 256 000 |
| Distance uncertainty (m) |
±(0.75 + 0.0025 % x distance + sampling resolution) |
| Measurement time | User-defined (maximum: 60 minutes) |
| Reflectance accuracy (dB) | ±2 |
| Typical real-time refresh (Hz) | 3 |
In stock and job-site ready. Package components available for individual sale. Overnight shipping available.
