Used HDD locating equipment available for next day delivery

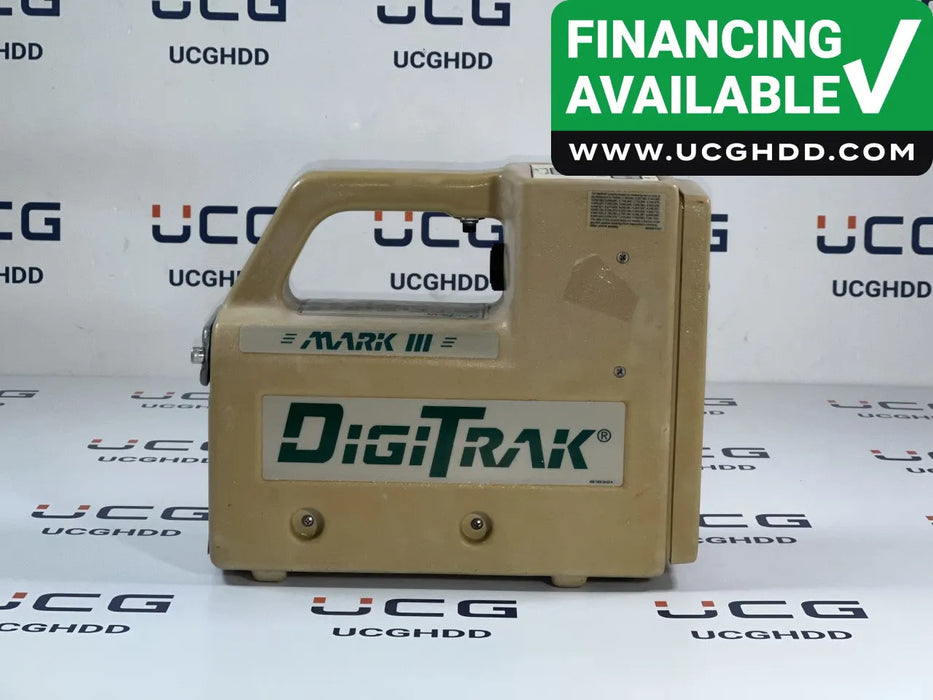

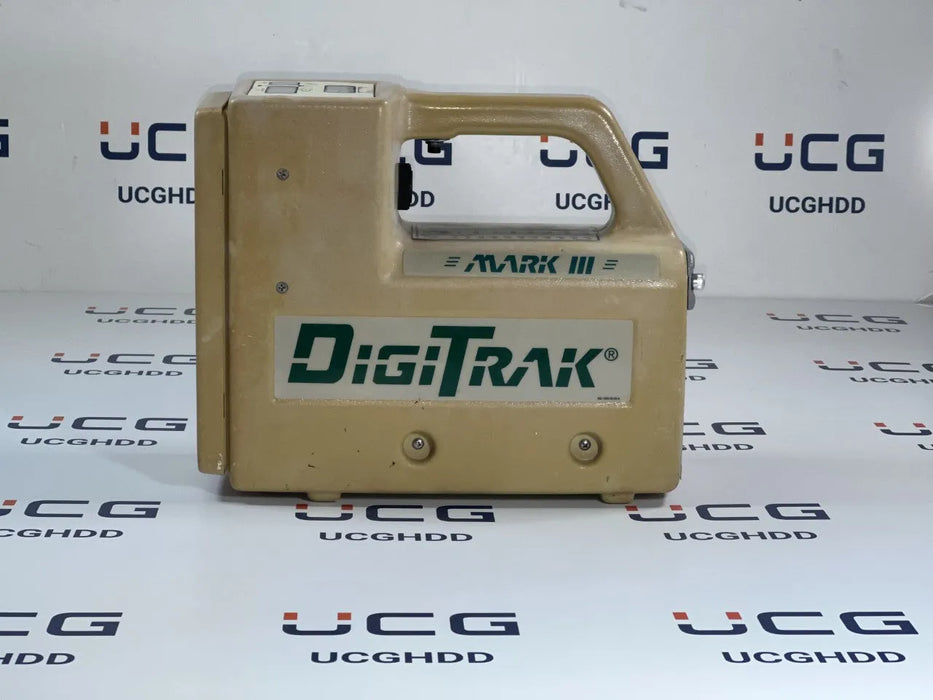

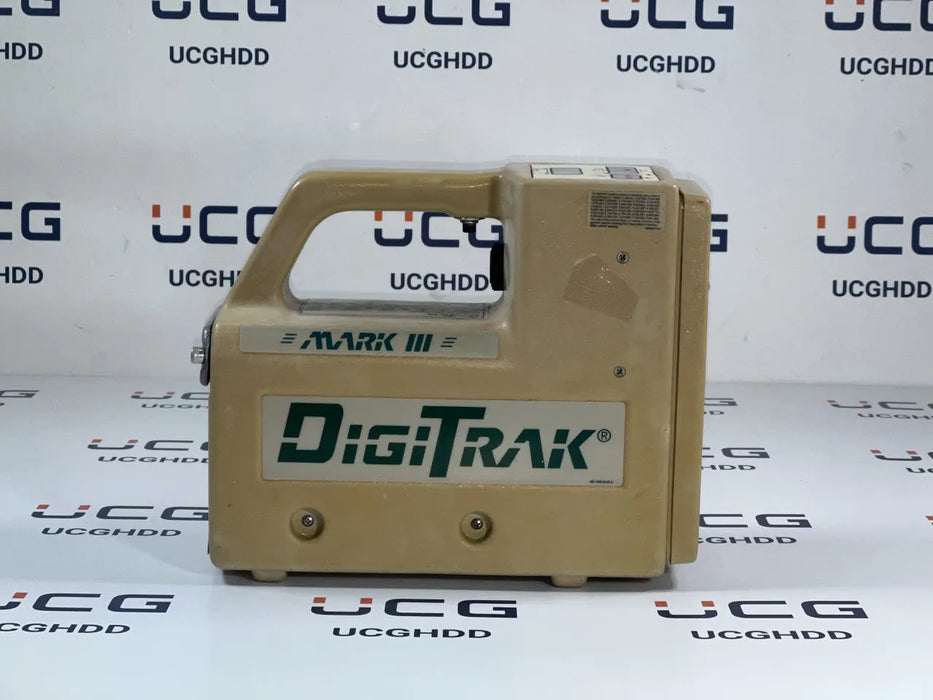

Used DigiTrak® Mark III™ Locator (Receiver)

Used Digitrak Mark 3 Receiver

Brand: DIGITRAK

SKU:

  • $ 2,595.00

FINANCING

Description

For sale used Digitrak Mark III receiver compatible with:

DT – 33 kHz 15” Standard Range Transmitter

DX – 33 kHz 15” Long Range Transmitter

Warranty 100 days.

In stock and job-site ready. Available for individual sale or in full package. Overnight shipping available.

Features:

Depth prediction firmware provides the locator with the estimated depth at the front locate point.

Easy-to-learn locating technique that leads you to the transmitter or locate point.

Simple one-button, single-hand operation.

No ghosts or false locates.

Smooth auto-gain changes are transparent to the operator.

Rechargeable NiCad batteries power the receiver.

Patented calibration procedure offers superb accuracy and the ability to recalibrate while drilling.

Left/right steering indicator allows remote steering from the drill rig.

Specifications:

Model number .............................................DR, DRR
Frequency .......................................................33 kHz
Power source .............. DigiTrak® NiCad battery pack
Battery life ...................................... 8–12 hr (approx.)
Battery charger .............12/28 V DC or 110/220 V AC
Depth/range ............................... up to 140 ft (42.7 m)
Depth display ...............................................Real time
Controls ............................................... Trigger switch
Graphic display ....................................................LCD
Audio output ...................................................Beeper
Telemetry range ................................. 2000 ft (610 m)
Operating temperature range ............... -4°F to 140°F
-20°C to 60°C
Depth accuracy ....................................±5% absolute
Height ................................................11 in. (279 mm)
Width ...................................................5 in. (127 mm)
Length ............................................13.5 in. (343 mm)
Weight (w/ battery) ...............................8.7 lb (3.9 kg)
Sleep mode ............................................ After 15 min
