Kaelus iPA-1921A PIM Passive Intermodulation Analyzer. Stock number: K1921A

by UCG Underground Supplies LLC
Original price $ 26,000.00 - Original price $ 26,000.00
Original price
$ 26,000.00
$ 26,000.00 - $ 26,000.00
Current price $ 26,000.00
Share this listing

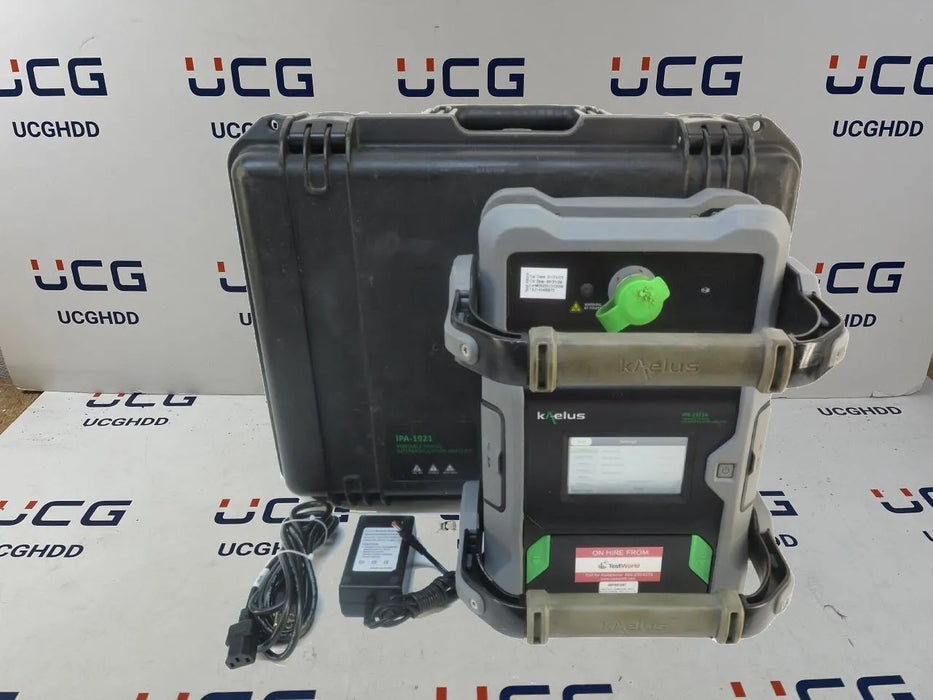

Package includes:

  • Kaelus iPA-1921A Passive Intermodulation Analyzer
  • Battery Pack
  • AC Adapter/Charger
  • Carrying Case (G)

Description:

Anritsu introduces the first fully integrated Passive Intermodulation (PIM) Analyzer suitable for commissioning and maintaining global wireless networks. This high performance, battery operated unit allows operators to fully characterize infrastructure quality by measuring Return Loss, VSWR, Cable Loss, Passive Intermodulation, Distance-to-Fault, and Distance-to-PIM with a single test instrument.

Financing:

Apply for financing. Low monthly payments.

We accept trade-ins:

We make trades local dealers cannot match. Trade up, trade down with cash-back, or sell your used equipment. Contact us to see what we can do for you!

Warranty:

We offer 30 day warranty. Take the stress out of buying used equipment.

    Next-day delivery within USA:

    Avoid downtime. Request one-day delivery and get remote display the next day.

    We ship worldwide:

    We ship worldwide and offer flexible international shipping rates. We work with the freight forwarder of your choice or help you to choose the most suitable one.

    Kaelus iPA-1921A specifications:

    SYSTEM
    Measurement method Reverse (reflected) PIM, 3rd and 5th order.
    Residual PIM < -117dBm/-160dBc maximum (<-125dBm/-168dBc typical)
    Interface ports 1x RF output (7-16 DIN female), 1x USB 2.0 Host, 1x USB 2.0 Slave, 1x SD 1x monitor port (SMB female), 1x SMA-RP (Wi-Fi external antenna)
    User interface Local - touch screen display 4.3in (109mm) Remote - tablet computer (included), any Wi-Fi enabled user device with web browser
    Return loss alarm Automatic detection and shut down when high RL is detected
    TRANSMITTER
    Transmit frequencies 1930-1950MHz 1930-1950MHz
    Frequency increment 100kHz
    Frequency accuracy ± 5ppm maximum, aging ± 1ppm maximum after first year
    Power per tone (adjustable) 0.1 to 20W (+20 to +43dBm in 1dB increments)
    Power accuracy (per tone) ± 0.5dB maximum
    RECEIVER
    Receive band (100kHz steps) 1850-1910MHz 1710-1755MHz
    Measurement noise floor < -128dBm
    Measurement range -50dBm to -128dBm
    ELECTRICAL
    Battery power 25.9 VDC, 2600 mAh, 67Wh Lithium Ion battery packs (removable)
    Battery operating time Depends on usage, 2 hr minimum per battery pack
    Battery charger Output: 29.4 VDC, 1.2 Amp
    MECHANICAL
    Dimensions H x D x W 369 x 160 x 240mm | 14.5 x 6.3 x 9.4in
    Weight 12kg | 26lbs
    ENVIRONMENTAL
    Temperature range -10ºC to +45ºC | +14°F to +113°F
    Ingress protection IP54. IP67 when enclosed in optional hard case
    Operational humidity 5% to 95% RH non-condensing
    Storage temperature range -10°C to +60°C | +14°F to +140°F
    Mechanical shock 40G shock rating
    iPA-1921A Dual Band PCS/AWS
    TX1 Range: 1930-1950MHz 1930-1950MHz
    TX2 Range: 1970-1990MHz 2110-2155MHz
    RX Range (PIM): 1850-1910MHz 1710-1755MHz
    RTF Module: RTF-2000A



    In stock and job-site ready. Package components available for individual sale. Overnight shipping available.
