Used Vivax Metrotech VM-810 Utility Locator Set. Stock number: V91
by Vivax Metrotech
Original price
$ 2,100.00
-
Original price
$ 2,100.00
Original price
$ 2,100.00
$ 2,100.00
-
$ 2,100.00
Current price
$ 2,100.00
Share this listing
Package includes:

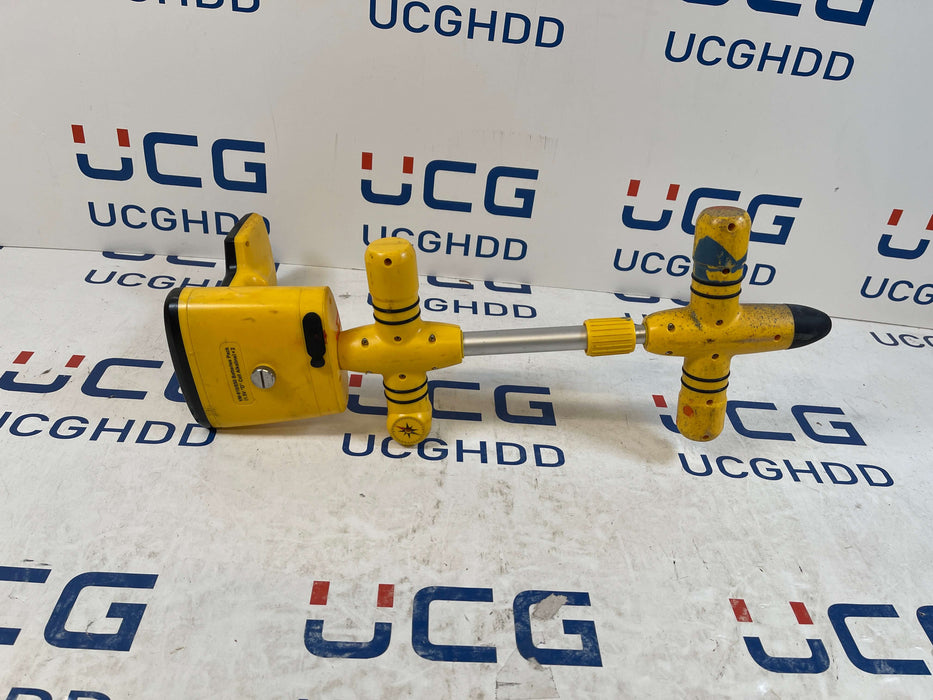

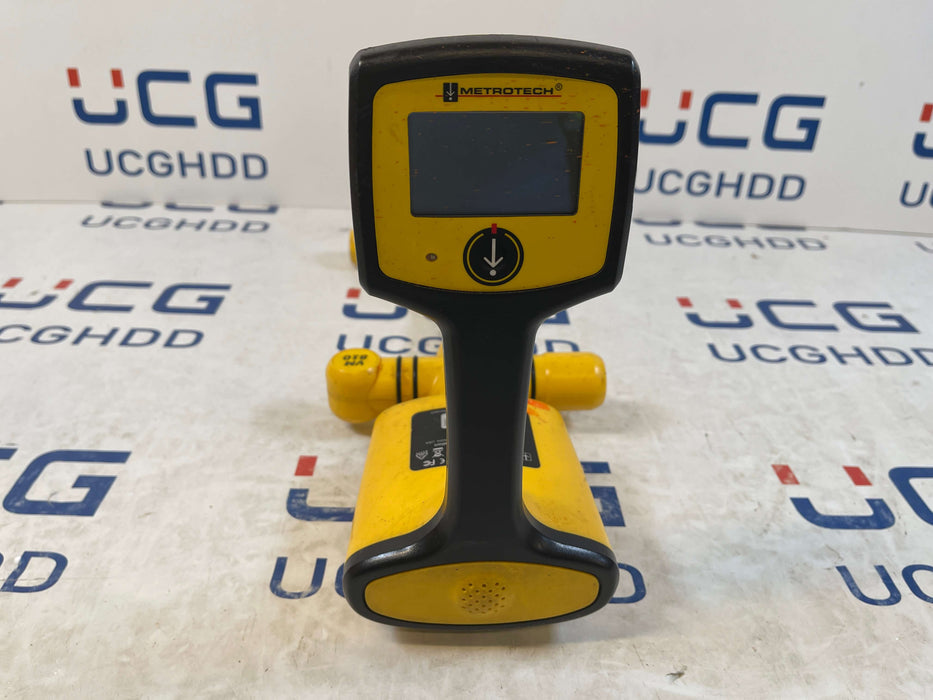

- Used Vivax Metrotech VM-810 Locator (Alkaline) VX213-01
-

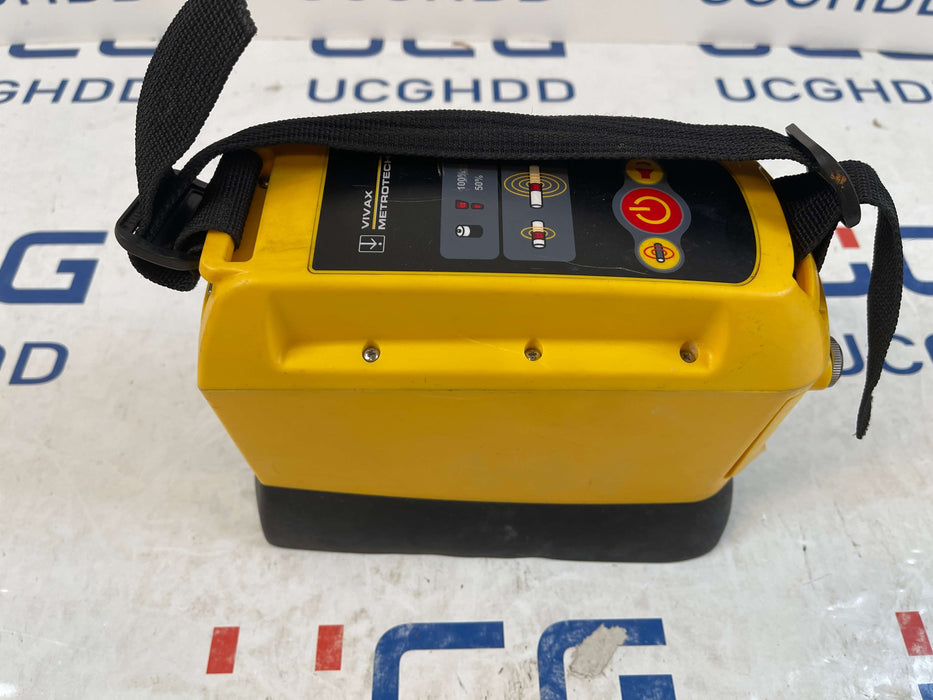

Used Vivax Metrotech VM-810 Transmitter (Alkaline) VX-213-02
- Used Ground Stake
- Used Direct Connection Leads

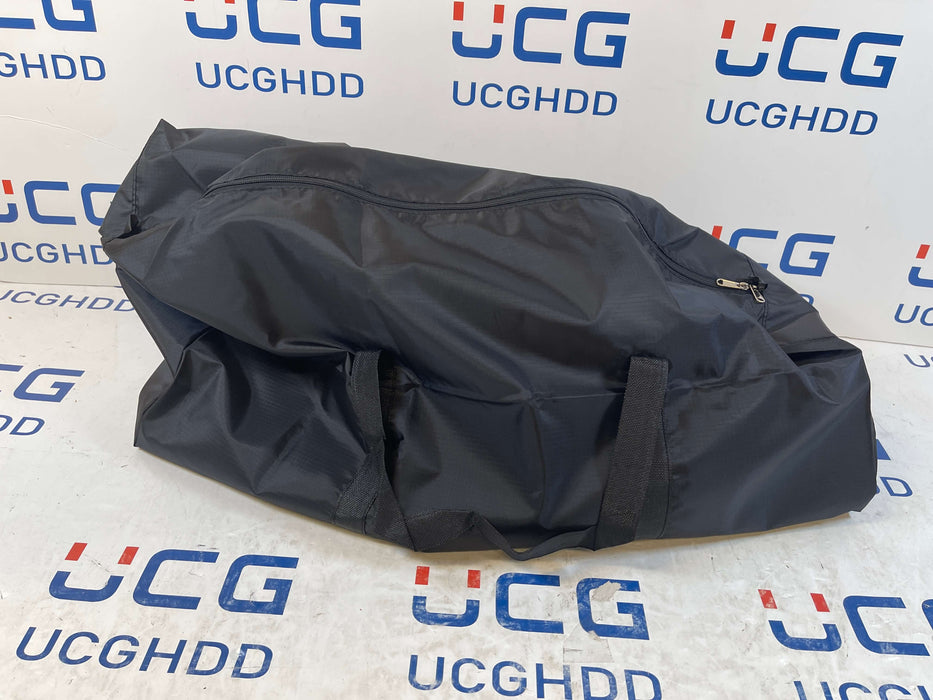

- Used Carrying Bag
Description:
The VM-810 by Vivax-Metrotech, often called the “Metrotech 810”, is the line locator of choice for many Customers around the world. Metrotech has been producing the well-tried and tested locator for over forty years. The Metrotech 810 was engineered to provide accurate, easy locating.
Financing:
Apply for financing. Low monthly payments.
We accept trade-ins:
We make trades local dealers cannot match. Trade up, trade down with cash-back, or sell your used equipment. Contact us to see what we can do for you!
Warranty:
We offer 30 day warranty. Take the stress out of buying used equipment.
Next-day delivery within USA:
Avoid downtime. Request one-day delivery and get locating package the next day.
We ship worldwide:
We ship worldwide and offer flexible international shipping rates. We work with the freight forwarder of your choice or help you to choose the most suitable one.
Specifications for locator and transmitter:
|
VM-810 Receiver Specifications |
|
| Description |
Single High-Frequency Locator Receiver |
| Uses |
Locating & pinpointing the position of buried pipes and cables |
| Construction |
- High impact thermoplastic (ABS) injection molded housing - Retractable aluminum antenna tube |
| Weight |
3.1lbs (1.4kg) |
| Dimensions |
Collapsed: 22in(L) x 8.3in(W) x 11in(H) (560mm x 210mm x 280mm) Extended: 31.1in(L) x 8.3in(W) x 11in(H) (790mm x 210mm x 280mm) |
| Display Type |
Black & white TFT 2.7” LCD WQVGA display (400 x 240 pixel) |
| Receiver Antennas |
3 x Peak antennas, 1 x compass antenna |
| Batteries |
2 x D-Cell alkaline batteries |
| Battery Life |
Typically 65 hours continuous use at 70ºF (21ºC) |
| Environmental |
IP54 and NEMA 4 |
| External Connectors |
- 1 x 3.5mm Headphone jack - 1 x Mini USB socket for software update - 1 x 4 pin Accessory jack |
| Temperature Range |
Operating: -4ºF to 122ºF (-20ºC to 50ºC) |
| Compliance/Approvals |
- Complies with European standard CE (Directive 99/5/EC) • EN 55011 • EN 61000-4-3 • EN 61000-4-2 • EN 61000-4-8 - Complies with FCC Rules Part 15 • CFR 47 Part 15: 2006 |
| Information Displayed |
- Signal strength : Numeric value - Distance sensitive Left/Right Centerline offset needle indicator - Compass: +/- 90°line direction indicator - Battery indicator - Depth and current reading |
| Audio Indication |
- Tones for Left or Right - Fading when close to centerline - Silence when centered or signal is too weak |
| Configuration |
Easy One-button operation: - Automatic backlight control - Short press – On - Long press – Off - Short press when the unit is switched On – Depth and Current reading |
| Operating Frequencies |
83.1kHz (83,077.5 Hz) |
| Operating Modes |
- Peak locate - Sonde |
| Gain / Scaling Control |
Automatic Gain control |
| Performance Using Single Undistorted Signal Source | |
| Trace accuracy: |
- Distance Sensitive Left/Right GuidanceTM |
| Current measurement accuracy: |
- 5% of actual current – up to 10ft (3m) - 10% of actual current – up to 20ft (6m) |
| Depth measurement accuracy: |
- 10 feet (3m): +/-5% or 2” - 20 feet (10m): +/-10% |
| Depth range: Dependent on the strength of signal radiating to the locator | |
| Compatible with Transmitters |
VM-810, 810 classic, 810DX |
|
VM-810 Transmitter Specifications |
|
| Description |
Pipe & cable locator transmitter |
| Uses |
Transmitting active signals for the location of buried pipes and cables |
| Construction |
High impact thermoplastic (ABS) injection molded housing |
| Weight |
2.95 lbs (1.34kg) |
| Dimension |
14.6in(L) x 4.5in(W) x 3.3in(H) (370mm x 115mm x 85 mm) |
| Power Options |
Standard battery pack - using 6 x alkaline “D” cells |
| Battery Life |
At 70ºF (21ºC) - continuous use Output Power Alkaline 1 watt > 60 hours |
| Environmental |
IP54 and NEMA 4 |
| External Connectors | 3-pin XLR connection socket |
| Temperature Range |
Operating : -4ºF to 122ºF (-20ºC to 50ºC) Storage : -40ºF to 140ºF (-40ºC to 60ºC) |
| Compliance and Approvals |
- Complies with European standard CE (Directive 99/5/EC) • EN 55011 • EN 61000-4-2 • EN 61000-4-3 • EN 61000-4-8 - Complies with FCC Rules Part 15 • CFR 47 Part 15 |
| Location Modes |
- Induction mode – applies signal inductively using the internal antenna - Direct connection mode - applies signal directly to the cable by clipping one output lead to the cable, the other to an independent ground - Clamp mode – applies signal using an inductive clamp (toroid) that is placed around the target cable * Modes are selected automatically when accessories are plugged in. * Default mode (no accessories) is induction |
| Transmitting Frequency by Mode |
- Induction mode / Direct connection mode / Clamp mode: 83.1kHz (83,077.5Hz) |
| Transmitting Mode Power output | In accordance with FCC part 15: - 1 watt – in High output level - 1/3 watt – in Low output level |
| Maximum Output Voltage |
Maximum output voltage = 60V RMS |
| Maximum Output Current |
Maximum output current = 150mA RMS constant power |
| Output Protection |
Output protected against accidental connection to up to 240V AC (50/60Hz) |
| Audio indication |
- Connection quality – variable beep rate sound showing the better signal applied - Low battery warning |
| Controls |
Use pushbuttons to select: - Power button: On / Off - Output level button: Low / High - Audio button: Off / Low / High |
| Compatible Receivers |
VM-810, 810DX, 810 classic |
In stock and job-site ready. Package components available for individual sale. Overnight shipping available.
