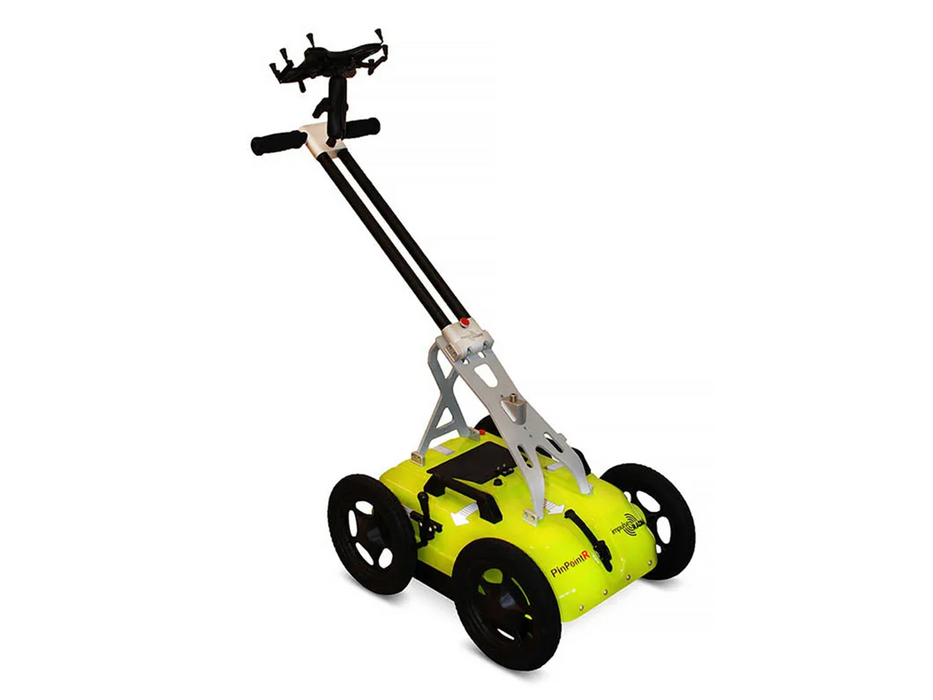

Impulse Radar PinPointR Ground Penetrating Radar GPR (New). Stock number: IR1
For Sale in This Listing:
- dual channel radar antenna (400/800MHz)

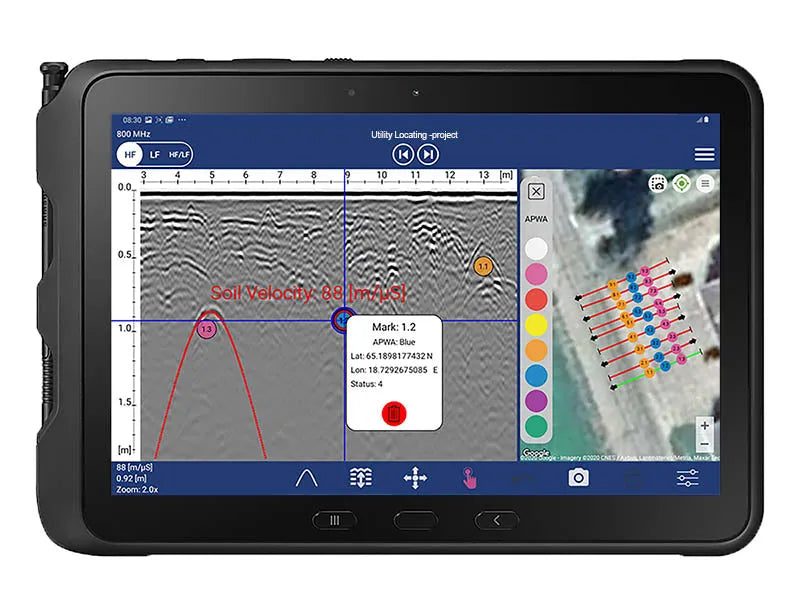

- Samsung Galaxy Tab Active5 Pro 128GB, Wi-Fi, Ruggedized Tablet
- PinPointR GPR cart
Desription:
A compact and robust high frequency GPR system which has been specifically designed to meet the requirements of the utility detection industry. The PinPointR GPR system combines Impulse Radar’s real-time sampling (RTS) technology with a dual set of antenna to provide unquestionable data fidelity and resolution.
Financing:
Apply for financing today. Enjoy low monthly payments that preserve your cash flow, empowering your business to grow without the burden of large upfront costs.
Unbeatable Trade-In Offers:
We make trades local dealers cannot match. Get top value for your surplus equipment. Trade-in multiple units at the same time. We will do whatever we can to get the deal done.
Warranty:
5-Year Warranty - Antenna
2-Year Warranty - Cart Assembly & Battery
1-Year Warranty - Consumables
Next-day delivery within Southeast USA Only:
Avoid downtime. Request one-day delivery and get locating package the next day.
Manuals:
PinPointR Brochure
PinPointR Data Sheet
| ANTENNA | |
| Antenna type | PinPointR dual-channel / RTS real-time sampling technology |
| Center frequency | Ch-1: 400 MHz / Ch-2: 800 MHz |
| Signal to noise ration (SNR) | >100 dB |
| Significant/number of bits | >16 bitSensor: -40°F to +122°F (-40°C to +50°C) DVL: +23°F to +122°F (-5°C to +50°C) |
| Scan/second | >800 |
| Survey speed | >130 km/h (80.7 mph) @ 5 cm point interval |
| Time window | 388 ns (LF) / 194 ns (HF) |
| Bandwidth | >120%, fractional, -10 dB |
| Acquisition mode | Wheel, time or manual |
| Positioning | Wheel encoder, internal DGPS, external GPS (NMEA 0183 protocol) |
| Power supply | 12 V Li-Ion rechargeable battery, or opt. ext. 12V DC source |
| Power consumption | 1.3 A |
| Operating time | 7 hours |
| Dimensions | 17.5" x 14" x 7.6" (antenna) |
| Weight | 14 lbs. (antenna - including battery) |
| Operating temperature | -7.6°F to +122°F (-20°C to +50°C) |
| Environmental | IP65 rated |
| Regulatory certification | Approved (FCC, CE & IC) |
| CART | |
| Dimensions (folded for transport) | 34.25" x 21.25" x 14.6" |
| Dimensions (when in use) | 39.75" x 21.25 x 40.55" |
| Wheels | 12.4" (off-road style) |
| Weight | 28.2 lbs. (Cart only), 44 lbs. (Cart, Antenna & Tablet) |
| USER INTERFACE Requirements | |
| Display | 1920 x 1200 pixel or better |
| Operating system | Android™ (Version 15) or later |
| Memory | 6 GB RAM and 128 GB storage or better |
| Processor | Qualcomm Snapdragon Octa-core 1.8 GHz or better |
| Recommendation | Samsung Tab Active Pro - Ruggedized Tablet w/Android 15, Qualcomm Snapdragon, 1.8-GHz, Octa-Core processor |
| WARRANTY | 5-Year (PinPointR antenna), 2-Year (Cart & Battery), 1-Year (Consummables), Tablet: 1-Year (Manufacturer warranty) |
