Used Fujikura FSM-60S Fusion Splicer w/CT-07 cleaver. Stock number: FJ60S

Original price $ 3,500.00 - Original price $ 3,500.00
Original price
$ 3,500.00
$ 3,500.00 - $ 3,500.00
Current price $ 3,500.00

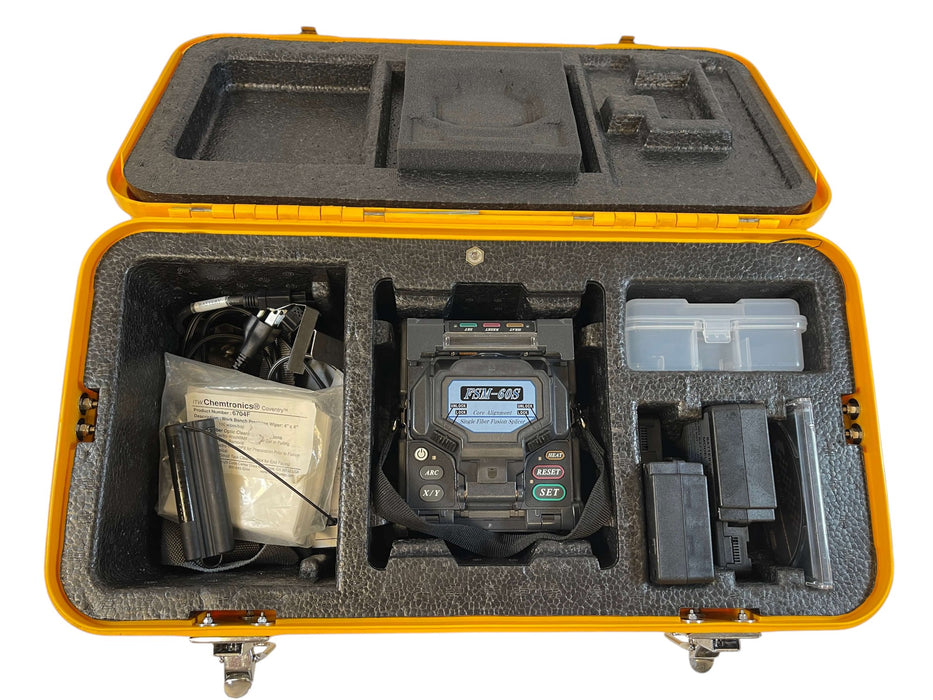

Package includes:

  • Used FSM-60S Fusion Splicer Machine (NA license. Arc count 250. Total count 20236
  • Used ADC-13 AC Adapter
  • Used DCC-14 Power Cord
  • Used BTR-08 Battery

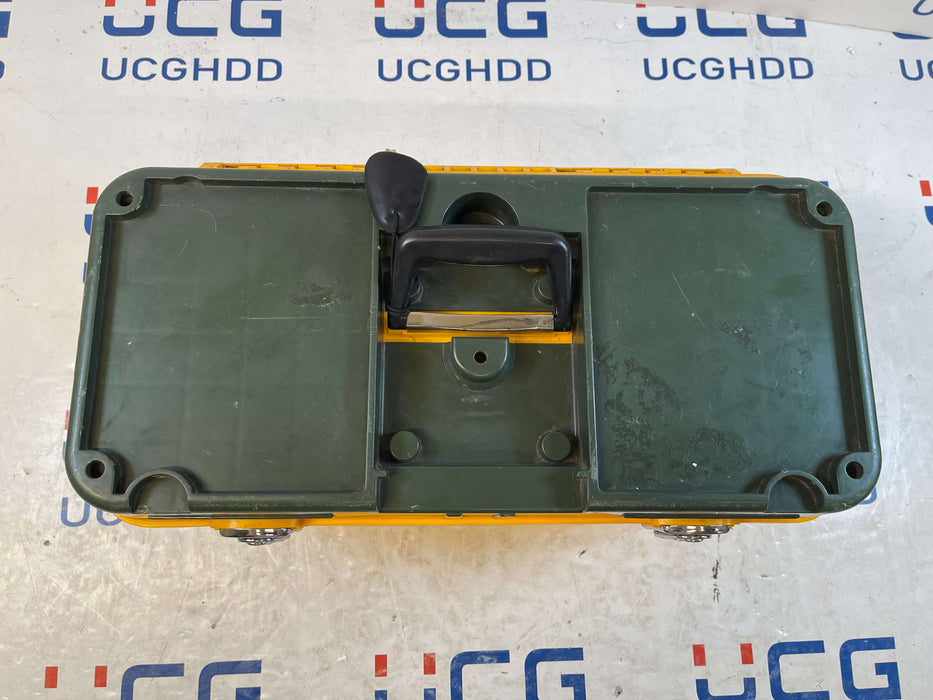

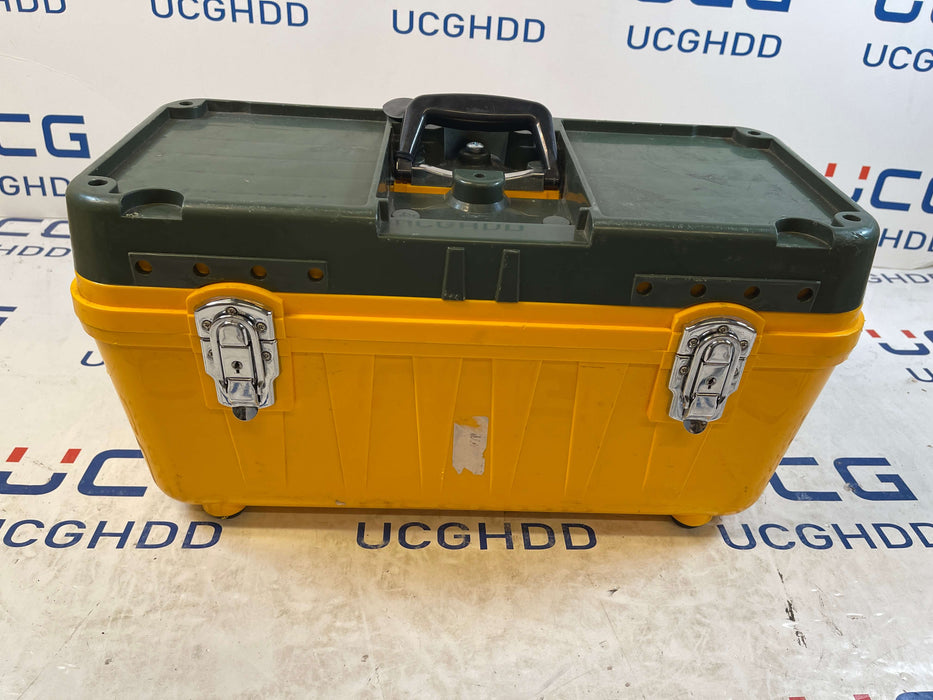

  • Used Transit Case with Carrying Strap
  • New KS-1 Kevlar Scissors
  • New FCC2 Fiber Connector Cleaner and Preparation Fluid
  • New Sharpie Permanent marker

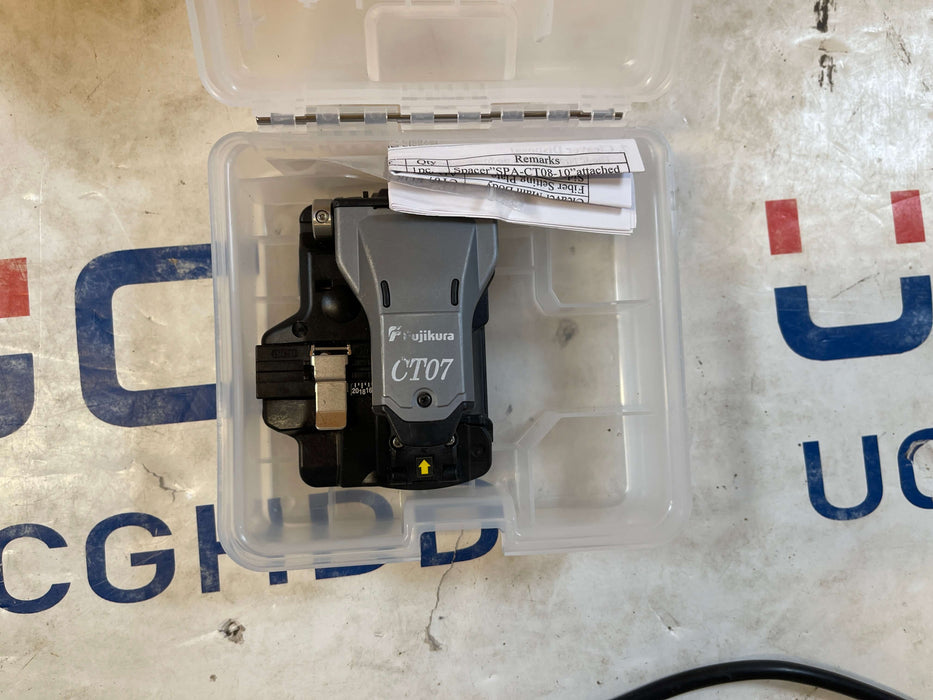

  • New CT-07 Cleaver
  • New FO103 Stripper

Financing:

Apply for financing. Low monthly payments.

We accept trade-ins:

We make trades local dealers cannot match. Trade up, trade down with cash-back, or sell your used equipment. Contact us to see what we can do for you!

Warranty:

We offer 30 day warranty. Take the stress out of buying used equipment.

Next-day delivery within USA:

Avoid downtime. Request one-day delivery and get locating package the next day.

We ship worldwide:

We ship worldwide and offer flexible international shipping rates. We work with the freight forwarder of your choice or help you to choose the most suitable one.

Specifications for splicer:

 PARAMETER  VALUE
Model FSM-60S Fusion Splicer
Applicable Fibers Single-mode (ITU-T G.652), Multimode (ITU-T G.651), DS (ITU -T G.653), NZDS (ITU-T G.655)
Cladding Diameter 80μm to150μm
Coating Diameter 100μm to 1,000μm
Fiber Cleave Length 8 to 16mm with 250μm coating diameter, 16mm with 900μm coating diameter
Typical Average Splice Loss 0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS
Measured by cut-back method relevant to ITU-T and IEC standards
Splicing Time Typical 9 seconds with standard single-mode fiber
Arc Calibration Method Automatic, real-time and by using results of previous splice when in AUTO mode, manual arc calibration function available
Splicing Modes 100 preset and user programmable modes
Splice Loss Estimate Based upon dual camera core alignment data
Storage of Splice Result Last 2000 results to be stored in the internal memory
Fiber Display X or Y, or both X and Y simultaneously. Front or rear monitor display options with automated image orientation
Magnification 300X for single X or Y view, or 187X for X and Y view
Viewing Method Dual cameras with 4.1 inch TFT color LCD monitor
Operating Condition 0 to 5,000m above sea level, 0 to 95%RH and -10 to 50°C respectively
Mechanical Proof Test 1.96 to 2.25N
Tube Heater Built-in tube heater with 30 heating modes; auto-start function
Tube Heating Time Typical 30 seconds with FP-03 sleeve, 35 seconds with FP3 (40), 35-55 seconds with Fujikura micro sleeves
Protection Sleeve Length 60mm, 40mm, micro
Splice/Heat Cycles with Battery Typical 160 cycles with power save functions activated
Power Supply Auto voltage selection from 100 to 240V AC or 10 to 15V DC with ADC-11, 13.2V DC with BTR-08 battery
Terminals USB 1.1 (USB-B type) for PC communication. Mini-DIN (6-pin) for HJS-02/03 and SH-8 tube heater
Wind Protection Maximum wind velocity of 15m/s. (34 mph)
Dimensions 136W x 161D x 143H (mm) / 5.3W x 6.3D x 5.6H (inches)
Weight 2.3 kg (5.1 lbs) with AC adapter ADC-11; 2.7kg (5.9 lbs) with BTR-08 battery

* In Good Condition.

Used Fujikura FSM-60S Fusion Splicer w/CT-07 cleaver. In stock, and job ready.

Stock number: FJ60S
