Used Fujikura FSM-60R Fusion Splicer w/CT-30 cleaver. Stock number: FJ60R

Original price $ 5,300.00 - Original price $ 5,300.00
Original price
$ 5,300.00
$ 5,300.00 - $ 5,300.00
Current price $ 5,300.00

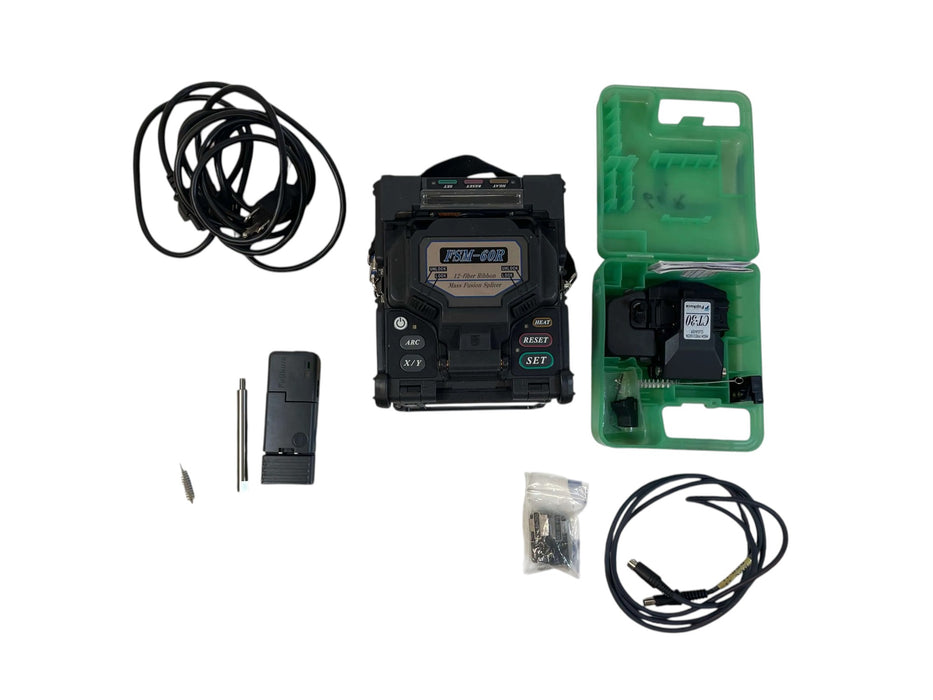

Package includes:

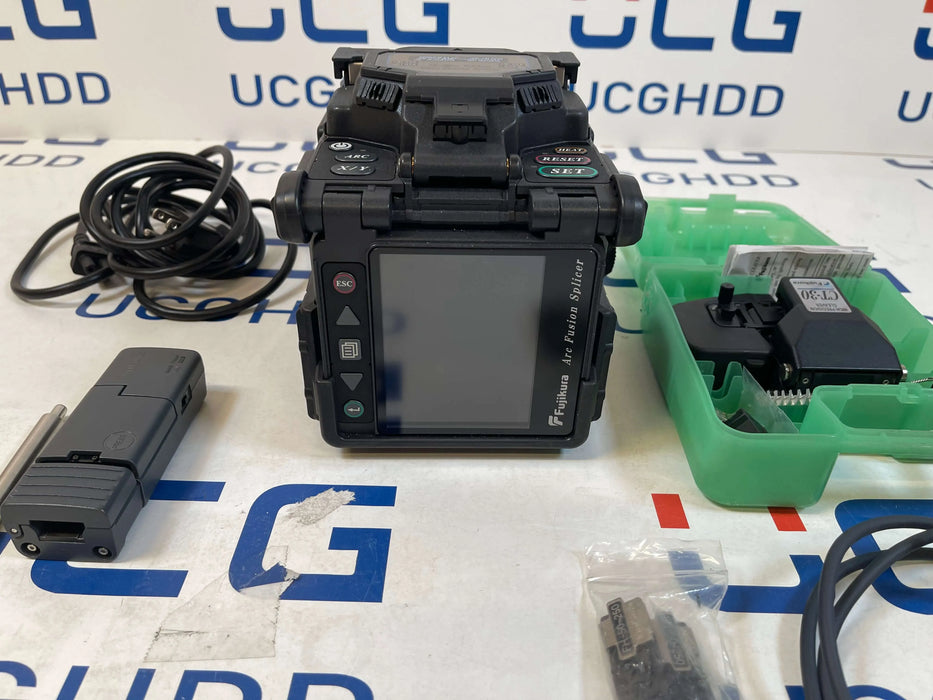

  • Used FSM-60R Fusion Splicer Machine
  • Used FH-50-12 Fiber Holders (pair)
  • Used ADC-13 AC Adapter
  • Used ACC-14 AC Cord
  • Used BTR-08 Battery
  • Used Magnifier
  • Used JP-05 Splice Sleeve Cooling Tray
  • Used USB Cable

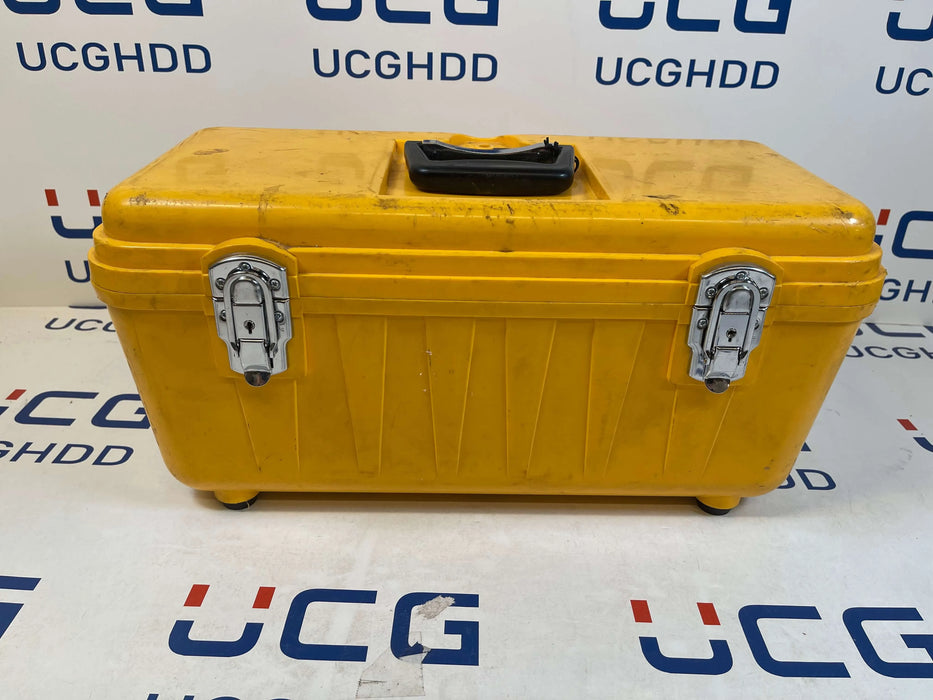

  • Used Transit Case with Carrying Strap
  • Used CT-30 Precision Fiber Cleaver
  • Used HJS-02 Hot Jacket Stripper


Apply for financing. Low monthly payments.

We accept trade-ins:

We make trades local dealers cannot match. Trade up, trade down with cash-back, or sell your used equipment. Contact us to see what we can do for you!


We offer 30 day warranty. Take the stress out of buying used equipment.

Next-day delivery within USA:

Avoid downtime. Request one-day delivery and get locating package the next day.

We ship worldwide:

We ship worldwide and offer flexible international shipping rates. We work with the freight forwarder of your choice or help you to choose the most suitable one.

Specifications for splicer:

Model FSM-60R12 Fusion Splicer
Applicable Fibers Single-mode (ITU-T G.652), Multimode (ITU-T G.651), DS (ITU -T G.653), NZDS (ITU-T G.655)
Fiber Count Single, 2, 4, 5, 6, 8, 10, 12
Cladding Diameter 125µm
Coating Diameter Ribbon: 0.25mm to 0.4mm, Single: 250µm and 900µm
Fiber Cleave Length 10mm
Typical Average Splice Loss 0.05dB with SM, 0.02dB with MM, 0.08dB with DS, 0.08dB with NZDS; measured by cut-back method relevant to ITU-T and IEC standards
Splicing Time Typical 20 seconds with standard single-mode fiber
Arc Calibration Method Automatic, real-time by using results of previous splice when in AUTO mode; manual arc calibration function available
Splicing Modes 100 preset and user programmable modes
Splice Loss Estimate Based upon dual camera cladding alignment data

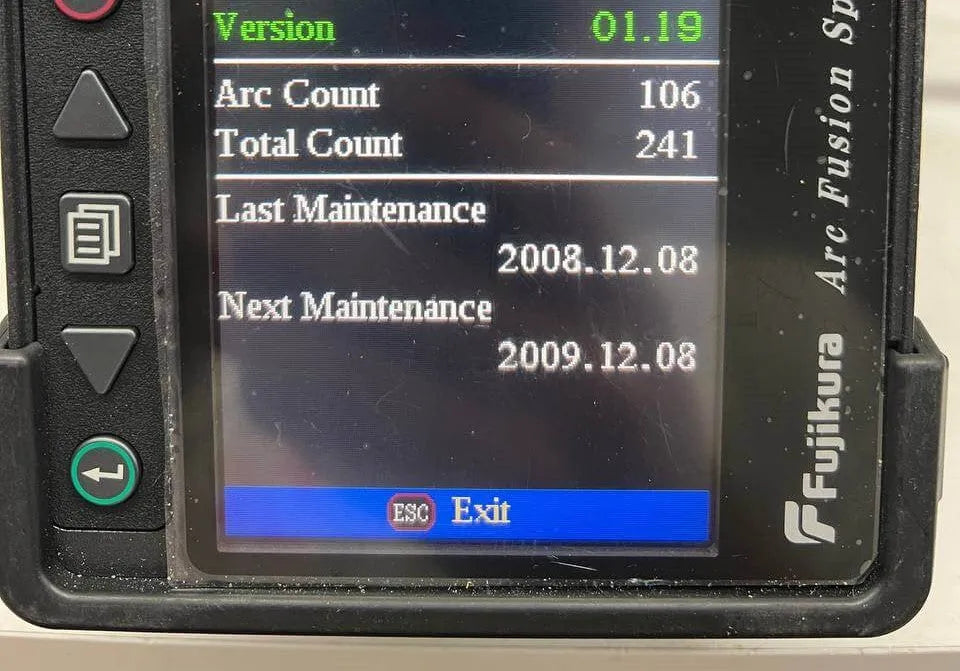

Storage of Splice Result Last 2000 splice results stored in the internal memory
Fiber Display X or Y, or both X and Y simultaneously; front or rear monitor display options with automatic image orientation
Magnification 35X to 90X
Viewing Method Dual cameras with 4.1 inch TFT color LCD monitor with anti-reflective coating
Operating Condition 0 to 3,660m above sea level, 0 to 95% RH, and -10 to 50°C respectively
Mechanical Proof Test 1.96 to 2.25N
Tube Heater Built-in tube heater with 30 heating modes; auto-start function
Tube Heating Time Typical 50 seconds with FP-5 sleeve, 40 seconds with FP3 (40), 35-55 seconds with Fujikura micro sleeves
Protection Sleeve Length 60mm, 40mm, Micro
Splice/Heat Cycles with Battery Typical 90 cycles with power save functions activated
Power Supply Auto voltage selection from 100 to 240V AC or 10 to 15V DC with ADC-13, 13.2V DC with BTR-08 battery

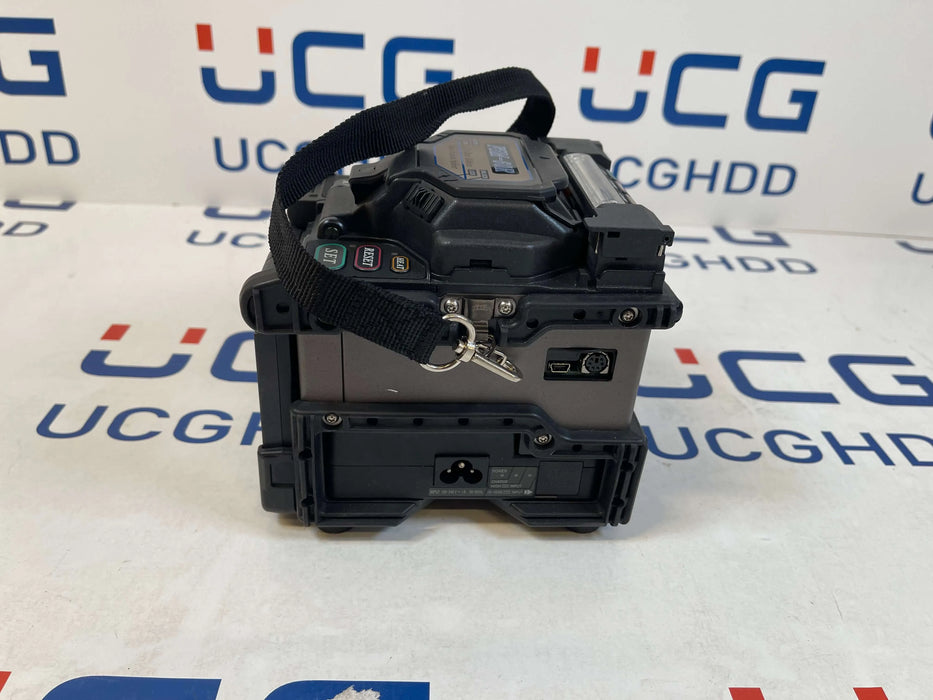

Terminals USB 1.1 (USB-B type) for PC communication, Mini-DIN (6-pin) for HJS-02/03 and SH-8 tube heater
Wind Protection Maximum wind velocity of 15m/s. (34 mph)
Dimensions 136W x 161D x 143H (mm) / 5.3W x 6.3D x 5.6H (inches)
Weight 2.1 kg (4.6 lbs) with AC adapter ADC-13; 2.5kg (5.5 lbs) with BTR-08 battery

* In Good Condition.

Used Fujikura FSM-60R Fusion Splicer w/CT-30 cleaver. In stock, and job ready.

Stock number: FJ60R
