Used Vivax Metrotech VM-850 Locator Set. Stock number: V12

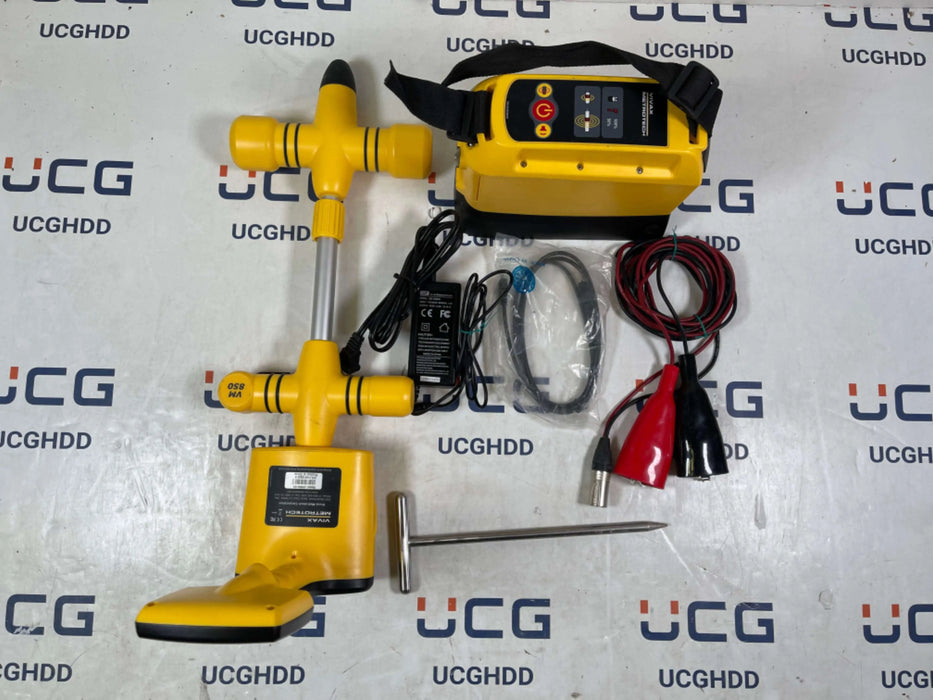

Package includes:
- Used Vivax Metrotech VM-850 Locator
- Used Vivax Metrotech VM-850 Transmitter
- Used Transmitter charging cable
- Used Gator clamp wire leads
- Used USB cable

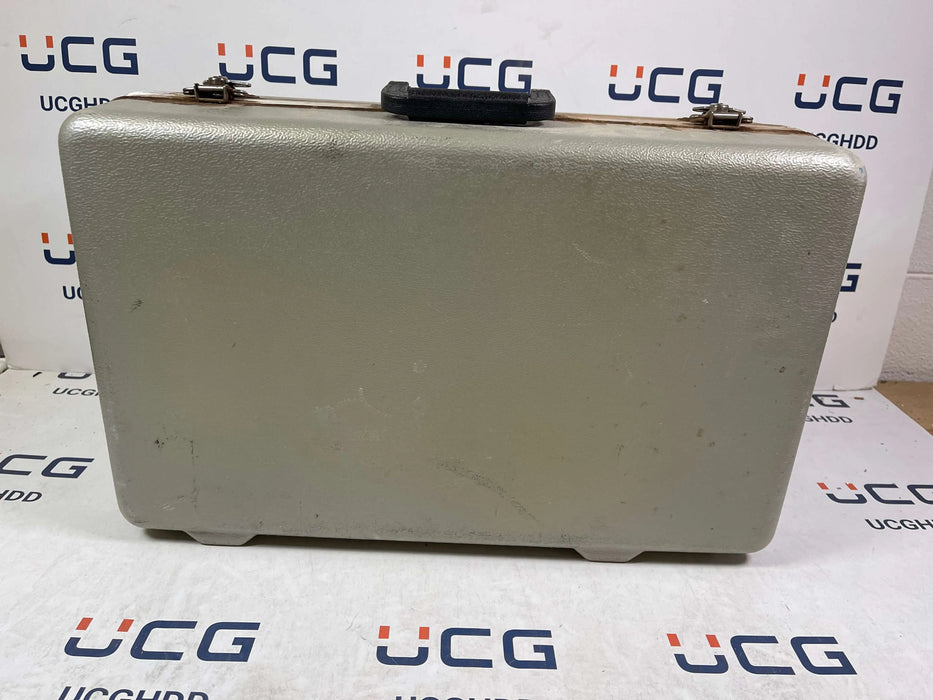

- Used Hard Case
Description:
The Vivax Metrotech VM 850 by Vivax-Metrotech is the line locator of choice for many Customers around the world. In fact, Metrotech has been producing the well-tried and tested Metrotech 850 utility locator for over forty years. The Metrotech 850 was engineered to provide, accurate, easy locating. It is a favorite among pipe and locating professionals.
Financing:
Apply for financing. Low monthly payments.
We accept trade-ins:
We make trades local dealers cannot match. Trade up, trade down with cash-back, or sell your used equipment. Contact us to see what we can do for you!
Warranty:
We offer 30 day warranty. Take the stress out of buying used equipment.
Next-day delivery within USA:
Avoid downtime. Request one-day delivery and get locating package the next day.
We ship worldwide:
We ship worldwide and offer flexible international shipping rates. We work with the freight forwarder of your choice or help you to choose the most suitable one.
Specifications for locator and transmitter:
VM-850 Receiver
| Description | Single low-frequency locator receiver |
| Uses | Locating & pinpointing the position of buried pipes and cables |
| Construction |
- High impact thermoplastic (ABS) injection molded housing - Retractable aluminum antenna tube |
| Weight | 3.1lbs (1.4kg) |
| Dimensions | Collapsed: 22in(L) x 8.3in(W) x 11in(H) (560mm x 210mm x 280mm) Extended: 31.1in(L) x 8.3in(W) x 11in(H) (790mm x 210mm x 280mm) |
| Display Type |
Black & white TFT 2.7” LCD WQVGA display (400 x 240 pixel) |
| Receiver Antennas |
3 x Peak antennas, 1 x compass antenna |
| Batteries |
2 x D-Cell alkaline batteries |
| Battery Life |
Alkaline – typically 65 hours continuous use at 70ºF (21ºC) |
| Environmental |
IP54 and NEMA 4 |
| External Connectors | - 1 x 3.5mm Headphone jack - 1 x Mini USB socket for software update - 1 x 4pin Accessories jack |
| Temperature Range |
- Operating: -4ºF to 122ºF (-20ºC to 50ºC) |
|
VM-850 Transmitter |
|
| Description | Pipe & cable locator transmitter |
| Designed Use | Transmitting active signals for the location of buried pipes and cables |
| Construction |
High impact thermoplastic (ABS) injection molded housing |
| Weight |
4.1lbs (1.86kg) |
| Dimensions |
14.6in(L) x 4.5in(W) x 3.3in(H) (370mm x 115mm x 85 mm) |
| Power Options |
Internal rechargeable Lithium-ion battery |
| Battery Life |
Lithium-ion – typically 40 hours intermittent use at 70ºF (21ºC) (with full backlight turned on). Re-charging cycles approx. 500 times the life cycle. Battery life varies with tempera |
| Environmental |
IP54 and NEMA 4 |
| External Connectors |
- 3-pin XLR connection socket - Fuse compartment |
| Temperature Range |
Operating : -4ºF to 122ºF (-20ºC to 50ºC) Storage : -40ºF to 140ºF (-40ºC to 60ºC) |
| Location Modes |
- Induction mode – applies signal inductively using the internal antenna - Direct connection mode - applies signal directly to the cable by clipping one output lead to the cable, the other to an independent ground - Clamp mode – applies signal using an inductive clamp (toroid) that is placed around the target cable * Modes are selected automatically when accessories are plugged in. * Default mode (no accessories) is induction |
| Transmitting Frequency by Mode |
- Induction mode / Direct connection mode / Clamp mode: 9.82kHz (9,820Hz) |
| Transmitting Mode Power output | In accordance with FCC part 15: 2 watt – in High output level 1/2watt – in Low output level |
| Maximum Output Voltage |
Maximum output voltage = 60V RMS |
| Maximum Output Current |
Maximum output current = 400mA RMS constant power |
| Output Protection |
Output protected against accidental connection to up to 240V AC (50/60Hz) |
| Audio indication |
- Connection quality – Fast beep sound showing the better signal applied - Low battery warning |
| Controls |
Use pushbuttons to select: - Power button: On / Off - Output level button: Low / High - Audio button: Off / Low / High |
| Compatible Receivers | VM-850, 850 Classic |
In stock and job-site ready. Package components available for individual sale. Overnight shipping available.
