Used Vivax Metrotech vLoc3-Pro & Loc3-10Tx Utility Locator Set. Stock number: V1

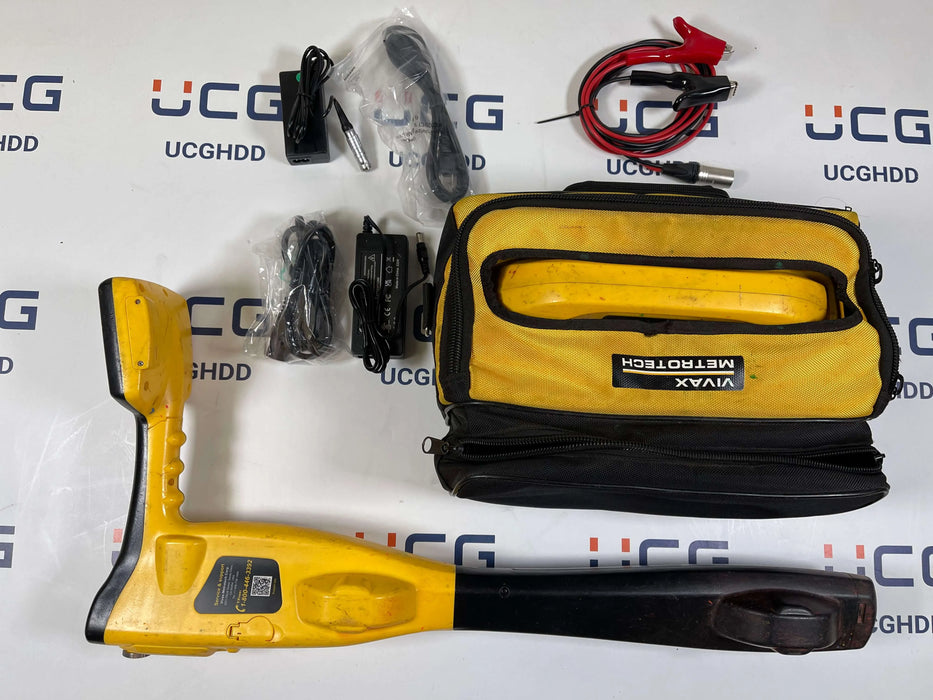

Package includes:
- Used vLoc3-Pro Receiver
- Used Loc3-10 Transmitter
- Used Li-ion Receiver Rechargeable Battery
- Used alkaline battery pack
- Used Vivax Bags
- Used Direct Connection Leads
Description:
The highly user configurable vLoc3 series contains eight passive locate modes, fault-find mode, SD (showing direction of outgoing current), and a range of configurable frequencies from 98Hz to 200 kHz. Visual and mechanical vibration alerts can also be configured by the user providing warnings for shallow depth, overload, overhead cables, and excessive swinging. Plug-in-play options for the receiver include optional Bluetooth module usable with external GPS devices and MLA (marker locator adapter) to locate buried markers.
Financing:
Apply for financing. Low monthly payments.
We accept trade-ins:
We make trades local dealers cannot match. Trade up, trade down with cash-back, or sell your used equipment. Contact us to see what we can do for you!
Warranty:
We offer 30 day warranty. Take the stress out of buying used equipment.
Next-day delivery within USA:
Avoid downtime. Request one-day delivery and get locating package the next day.
We ship worldwide:
We ship worldwide and offer flexible international shipping rates. We work with the freight forwarder of your choice or help you to choose the most suitable one.
Specifications for locator and transmitter:

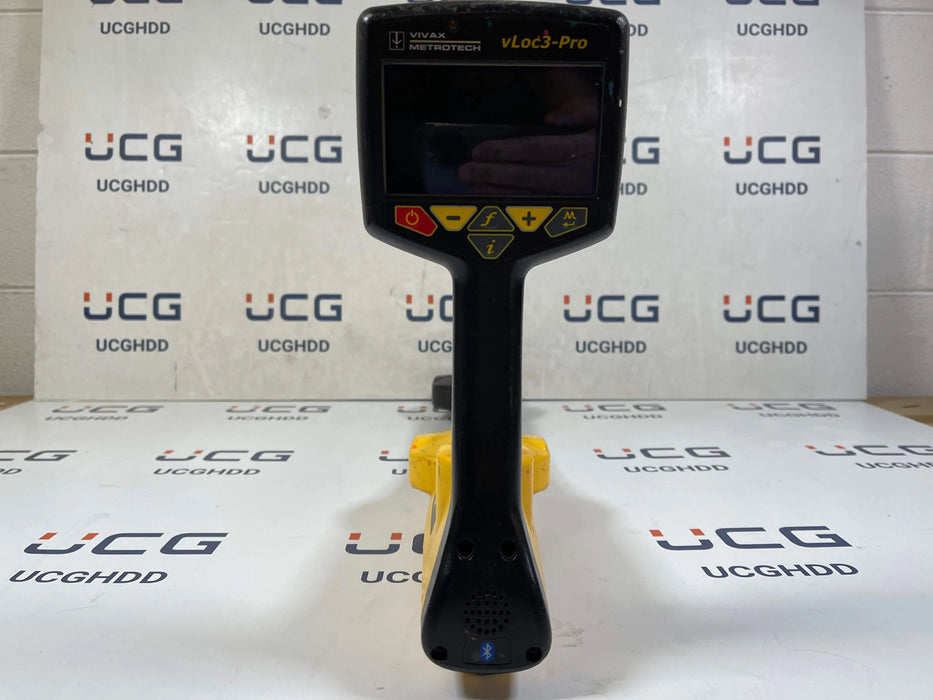

vLoc3-Pro
| Description and Typical Applications | ||
| Item | Parameter | |
| Model Name | vLoc3-Pro | |
| Model Number | VX219-01 | |
| Description | Multi-purpose precision locator receiver | |
| Intended Use | Locating & pinpointing the position of buried pipes, cables, and sondes | |
| Characteristics | ||
| Item | Parameter | |
| Weight | 4.6lbs (2.1kg) | |
| Dimensions | 12.6in(L) x 4.9in(W) x 26.6in(H) (321mm x 124mm x 676mm) | |
| Batteries | - Six xAAAlkaline batteries - Rechargeable custom Lithium-ion batteries with 100-240V AC mains charger |
|
| Environmental | - IP65 and NEMA 4 | |
| External Connectors | - Accessory Socket – to charge the internal batteries and attach accessories - Mini USB socket for data transfer and software updates |
|
| Temperature Range | - Operating: -4ºF to 122ºF (-20ºC to 50ºC) - Storage: -40ºF to 140ºF (-40ºC to 60ºC) |
|
| Operational | ||
| Accuracy | Locate pinpointing accuracy: | - Over 9ft (3m) – 5% of the depth - Up to 9ft (3m) – 3% of the depth |
| Depth measurement accuracy: | +/- 5% of depth | |
| Current measurement accuracy: | - 5% of actual current – over 9ft (3m) - 3% of actual current – up to 9ft (3m) |
|
| Depth range: | Dependent on the strength of the signal radiating to the locator |
|
| * Performance rated using a single undistorted signal source | ||
| Compatible Transmitters |
Loc series, Loc3 series, VM-550FF, VM-560FF, FLS series | |
| Shipping and Packaging | ||
| Item | Parameter | |
| Shipping Weight | 10.5lbs (4.75kg) | |
| Shipping Dimension | 16.5in(L) x 11in(W) x 27.6in(H) (420mm x 280mm x 700mm) | |
Loc3-10Tx
| Typical Applications | |||||||||
| Item | Parameter | ||||||||
| Description | Pipe & cable locator transmitter | ||||||||
| Uses | Transmitting active signals for the location of buried pipes and cables |
||||||||
| Transmitter Assembly | |||||||||
| Item | Parameter | ||||||||
| Weight | 11lbs (5kg) | ||||||||
| Dimension | 16.5in(L) x 7.1in(W) x7.3in(H) (420mm x 180mm x 185mm) | ||||||||
| Power Supply | - Standard battery pack – using 12 x alkaline “D” cells or Ni-MH rechargeable battery pack - 14.4V |
||||||||
| External Connectors | - 1 x 3 pin connection socket–(XLR) - 1 x socket for battery charger & power in - 1 x fuse (output protection) 1.25A/250V, 0.2in(Dia.) x 0.8in(L) (5mm x 20mm) - 1 x USB socket (in base of main transmitter body for loading operating software) |
||||||||
| Environmental | |||||||||
| Item | Parameter | ||||||||
| Temperature Range | Operating : -4ºF to 122ºF (-20ºC to 50ºC) Storage : -40ºF to 140ºF (-40ºC to 60ºC) |
||||||||
| Weather Proof | IP54 and NEMA 4 | ||||||||
| Shipping Weight | 38.6lbs (17.5kg) | ||||||||
| Shipping Dimension | 30.1in(L) x 17.5in(W) x 11.2in(H) (765mm x 445mm x 285mm) | ||||||||
| Loc-10Tx Rechargeable Batteries With Tray Accessory | |||||||||
| Item | Parameter | ||||||||
| Description | 10W transmitter rechargeable batteries with tray | ||||||||
| Weight | 11lbs (3.2kg) | ||||||||
| Dimension | 16.5in(L) x 6.8in(W) x2.6in(H) (420mm x 172mm x 70mm) | ||||||||
| Batteries | 12 x rechargeable D cell (Ni-MH) batteries | ||||||||
| Temperature Range | Operating : 0ºF to 122ºF (0ºC to 50ºC) Storage : -4ºF to 140ºF (-20ºC to 60ºC) |
||||||||
In stock and job-site ready. Package components available for individual sale. Overnight shipping available.
