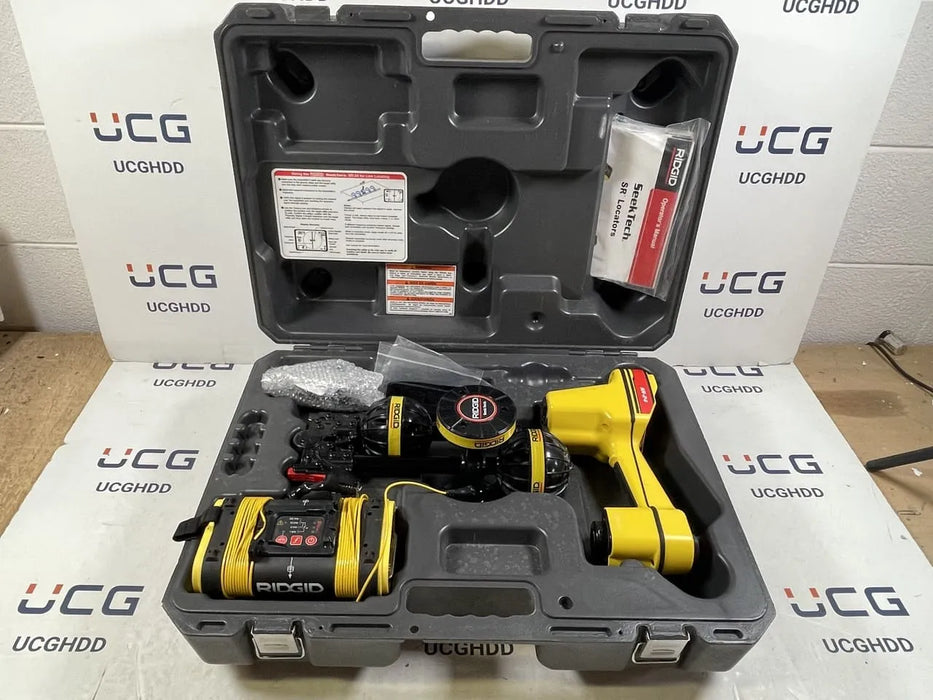

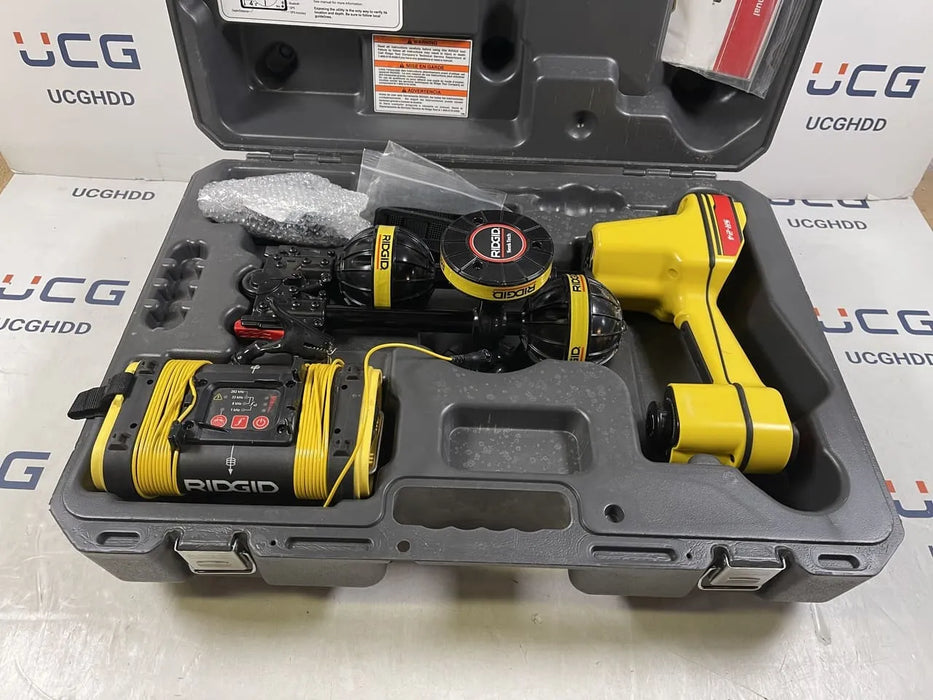

Used SeekTech SR-24 Utility kit. SR-24 Locator & ST-305 Transmitter included. Stock number: ST21

Does not include SeekTech 4" (100 mm) Inductive Signal Clamp

All parts are fully tested and in perfect working condition.

Guaranteed to work. Take the stress out of buying used equipment.

Seektech SR-24 locator

The SR-24 is a precision utility locating instrument with GPS and Bluetooth® technology for easy integration with external data capture devices.

The SR-24’s omnidirectional antennas capture the complete signal field, making it easy to acquire the signal and trace its path. The receiver displays the utility’s position and direction on the display, providing an intuitive locating experience.

For added confidence, audio and visual warnings notify the operator if the shape of the signal field is being distorted so that appropriate action can be taken to avoid mismarking the utility’s position

Benefits

• Large display shows the utility’s estimated position, direction, and depth
• Omnidirectional antennas capture the complete signal field for greater speed and accuracy
• Built-in GPS track location coordinates for mapping and GIS applications
• Bluetooth® technology streams data to smartphones, tablets, or high-precision GPS instruments
• Smartphone/Tablet App map multiple tracks and waypoints and export to GIS software

Specifications

• Weight – (without Batteries) 3.3 lb (1.5 kg).
• Length – 11.2" (28.4 cm).
• Width – 4.3" (10.9 cm).
• Height – 31" (79 cm).
• Battery Type – 4x Size C, 1.5 V Alkaline, 1.2 V NiMH/NiCad.
• Operating Temperature – -4°F to 122°F (-20°C to 50°C).
• Storage Temperature – -4°F to 140°F (-20°C to 60°C).
• Programmable Line & Sonde Frequencies – Any from 10 Hz to 35 kHz.
• Default Active Line Trace Frequencies – 128Hz, 1kHz, 8kHz, 33kHz.
• Passive Power Frequencies – 50Hz, 60Hz.
• Passive Frequency Ranges – <4kHz, 4kHz – 15kHz, 15kHz – 30kHz.
• Programmable Line Trace Frequencies – Up to 35kHz.
• Sonde Frequencies – 16Hz, 512Hz, 33kHz.
• Wireless Technology – Bluetooth® Class 1.
• Wireless Range – 1093 yards (1000 meters).
• GPS Average Accuracy – Less than 2.5 m (8.2 ft).

Seektech ST-305 Line Transmitter

The 5-watt SeekTech ST-305 Line Transmitter lets you energize metallic lines for tracing.

• Lightweight and compact transmitter that delivers up to 5 Watts of power.

• Can transmit two frequencies simultaneously.

• Audio feedback confirms a good circuit before beginning a trace

Seektech ST-305 Line Transmitter Specifications
